DERMA VISION
Videomicroscope for dermatology (50X)
 |
 |

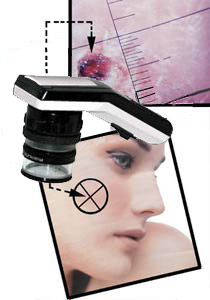

Derma Vision is a practical, easy to use, highly performing video-optical instrument to carefully inspect epidermic surfaces.
Derma Vision has a video magnification of 50X with a 5.5 mm field of view (referred to a 14" monitor), a practical focusing ring nut and an incorporated intense cold light illumination.
At the base of Derma Vision's illuminating part, there is an engraved glass decimal scale which allows to take accurate skin close measurements. This scale may be easily substituted with a neutral optical glass which comes with the device and which serves both to protect the Derma Vision's quality objective and to act as a support surface for the optical video system in order to obtain a perfect focusing.
The Derma Vision video system is supplied in two versions: analogic "Derma Vision A" for the direct connection to a monitor/TV (scart socket) or digital "Derma Vision B" for the connection to a PC or laptop through its 1.3 Mpx USB camera.

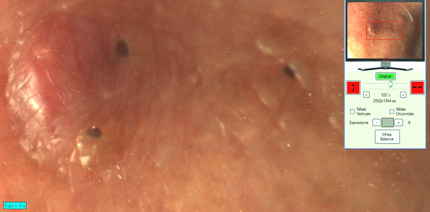

In outfit to Derma Vision B, a high features software (Video View Light) is supplied, it is possible acquire and save images in different formats, open and compare more images among them on the screen, zoom and make linear measurements.
The Derma Vision system can be advised to the aesthetics structures instead the more professional Video Micro Check.
 |
 |
 |
 |
 |
|
 |
|
The DERMA VISION "A" analogic TV system
(code DER OVT 000075)
 |
Video head for Derma Vision "A" code SPT OVT 000636 |
 |
Switching alimentation set (input: 100-240V - output: 12V) with cables and connectors for the connection to a monitor / TV. code SPT OVT 000605 |
 |
Neutral crystal code SPT PEA 000076 |
 |
Decimal scale code SPT TOH 000235 |
DERMA VISION "B" digital USB system
(code DER OVT 000637)
|
Video head for Derma Vision "B" with 1.3Mpx USB camera code SPT OVT 000688 |
 |
Video View Light software for viewing, acquiring, comparing and archiving images code VVL 10394 |
|
Neutral crystal code SPT PEA 000076 |
|
Decimal scale code SPT TOH 000235 |
USB MICROCAMERA
|
• Image sensor: 1/4" N-MOS • Synchronization system: internal (progressive scan) • 1.3 Mega pixels • Available resolutions: 1280x960 (SXGA), 640x480 (VGA) • Output color format: YUV (8 bits) • Automatic white balance • USB 2.0 interface • Operation temperature: 0°C - 40°C |
EXAMPLES OF EPILUMINESCENCE EXAMINATIONS
| Basal cell carcinoma |  |
| Basal cell carcinoma and epidermal nevus (macro) |
|
| Basal cell carcinoma and epidermal nevus (epiluminescence) |
| Pigmented seborrheic keratosis | |
| Acral melanocytic nevus | |
| Reed nevus |
| Dysplastic nevus | |
| Serious dysplastic nevus |
| Serious dysplastic nevus | |
| Serious dysplastic nevus with partial regression |
| Malignant melanoma (male, 55 ys., leg) |
|
| Malignant melanoma with regression (female, 68 ys., back) |
|
| Malignant melanoma (male, 38 ys., back) |
|
| Malignant melanoma with regression (female, 80 ys., ear) |
| Malignant melanoma (male, 47 ys., back) |
|
| For kind concession of Dr. R. Murace - Dermatologist |
EXAMPLES IN THE OPHTHALMIC SECTOR
 |
 |
 |
 |
System requirements for proper software operation:
| Operative system: | Windows 10 Pro (32 or 64 bit) |
| CPU: | Intel Core iX or equivalent |
| RAM memory: | 4 Gb (recommended 8 Gb) |
| Video card: | 1 GB |
| Disk space: | 100 MB |
| Input ports: | 1 USB 2.0 for video input 1 USB 2.0 for the protection key |
ACCESSORIES
 |
USB Footswitch To use to take picture when your hands are busy or the PC is not near the workplace code SPT FSW 000668 |
 |
Cedar oil (13.5 ml) Used in dermatology that in contact with the skin improves the brilliance of images. code SPT CED 000685 |
