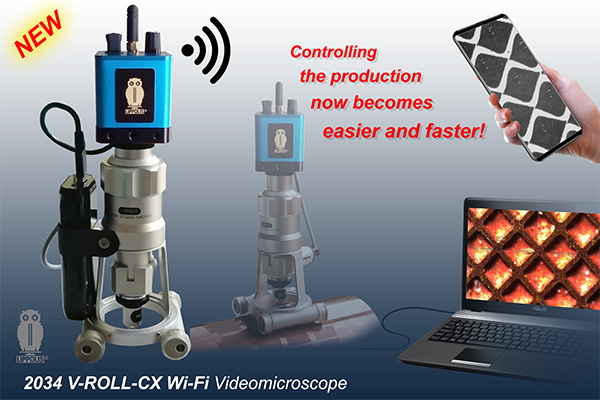

2034 V-ROLL-CX Wi-Fi

Videomicroscope 2034 with WiFi camera

This new portable video microscope, with professional features, is able to facilitate and speed up the control of production in various sectors.

Its structure is completely made of aluminum, very compact and easy to handle, does not need to be connected to the power supply because it is equipped with a powerful rechargeable lithium battery.

Its design originates from the need to be able to quickly inspect flat or curved surfaces being processed without the use of PC / Laptop with cables, extensions, etc..

For smartphones the connection is wireless (or with OTG cable, if your cell phone allows it), while for PCs a USB connection is used (but wireless connection is also possible).

The video microscope is so light that it can be carried, positioned and focused with one hand, checking the transmitted image directly on your mobile phone (Android or iPhone) by saving frames or movies. The images can be measured on a remote PC equipped with our Video View software.

The lenses, equipped with our magnetic mount system, are interchangeable. Those available for use with coaxial light are 7, from 180X to 2350X (field of view: 1.8 x 1.3 to 0.15 x 0.11 mm).

The coaxial light can be easily disconnected; this allows the use of 5 low magnification and higher field of view objectives, from 30X to 100X, with fields of view from 12.7 x 9.5 to 3.75 x 2.8 mm).

For the latter objectives, the illumination can be done by an external light source (angular or grazing) also with a led illuminating pen (code SPT PEN 000585), ideal for non-specular surfaces such as molds, rubber matrices, etc.


SPECIFICATIONS

Camera
Resolution 1024 x 720
Frames per Second MJPG format: 15
YUY2 format: 9
Pixel Size 2.2 µm x 2.2 µm
WiFi Range >10 meters
Power Bank
Power 5200 mAh
Duration 8 hours
Recharge 5 hours

COAXIAL LIGHT

Mag. Field of view (mm) Code
180X 1.8 x 1.3 0180-CLPL 34-540M
200X 1.4 x 1.0 0200-CLPL 34-540M
320X 1.1 x 0.8 0320-CLPL 34-540M
475X 0.75 x 0.55 0475-CLPL 34-540M
750X 0.42 x 0.31 0750-CLPL 34-540M
1500X 0.21 x 0.15 1500-CLPL 34-540M
2350X 0.15 x 0.11 2350-CLPL 34-540M

GRAZING LIGHT

Mag. Field of view (mm) Code
30X 12.7 x 9.5 B-30
40X 11 x 8.3 C-40
50X 7.3 x 5.5 D-50
75X 4.4 x 3.3 F-75
100X 3.75 x 2.8 G-100
