PEAK LONG DISTANCE MICROSCOPE LDM-40

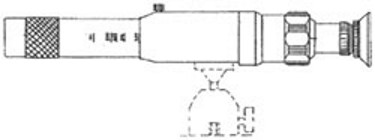

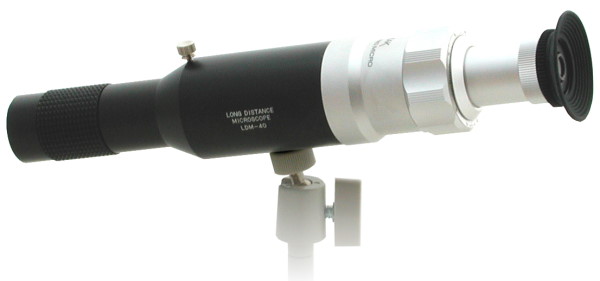

Peak Long Distance Microscope LDM-40
Peak Long Distance Microscope LDM-40 Microscopio 2034
2034 Microscope

The Peak Long Distance Microscope LDM-40 consists of a Wide Stand Microscope 40X and an objective unit. The objects being inspected can be enlarged sharply at short distance of 200 mm as well as at a long distance.

A cross hair reticle is provided in the eye-piece of Wide Stand Microscope. For the objective we adopt collimating lens system. There is a hole on the lower part of this instrument to fix a supporting stand such as a tripod.

When you remove the objective unit from the microscope and attach an acrylic base (in outfit) to the body of the microscope you can use it as the Wide Stand Microscope 40X (pen light unit to be purchased separately). (See item 2034).

SPECIFICATIONS

Working distance 200 mm 300 mm 400 mm 500 mm
Magnification 27X 15X 10X 8X
Field of view 5.5 mm 10 mm 15 mm 19 mm
Size 46 x 316 mm
Weight 141 g
