Brinell Check is a small video instrument (it can be hold in a hand) able to measure automatically the Brinell hardness value or "calibrated shear pin" on indents from 1 mm to 2,5 mm or from 1,5 mm to 5 mm of diameter (made in two versions). Equipped with a stainless steel body and a magnetic base, it can stay in an erect and stable position above the indent allowing an image vision perfectly clean and ensuring careful and constant measurements.
Placing the Brinell Check on a flat or curved surface and pressing the acquisition button, the image of the indent, with the relative hardness and diameter values with thousandth of micron, are sent to the PC or to the laptop.
Through the setting of a tolerance value on the measurements to be made, the user will have the possibility to evaluate visually the accuracy of the indent, thanks to a "YES/NO" response which will appear in an unequivocal way on the monitor.
Moreover it's possible to make appearing on the screen, in an automatic succession, the values of the last five hardness measurements made.
With Brinell Check is possible to work up to 10 meters far from the work position thanks to the availability of Video Power cables and thanks to the software possibility of enlarging on the monitor, the label of values and the centre of pointing.
The images with their content can be saved automatically in a predefined folder, while in a compatible file with Excel are archived all the information relative to: identification of the user (number or name), date/hour, parameters on the hardness test, measured hardness values and path of the saved image.
The adopted technical-video solutions, the characteristics of the software and the excellent "quality-price" relation, make the Brinell Check one of the most performing tool still present in the sector.
|input 100-240V - output 12V
|Ø 43 x 270 mm
|Video-optical head for Brinell Check
(indents from 1.5 to 5 mm)
code SPT OVT 000448
TestataVideo-optical head for Brinell Check
(indents from 1 to 2.5 mm)
code SPT OVT 000668
|Video power cable B for Brinell (2.3 m)
code SPT OVT 000453
|Set USB 2.0 interface for PC or Laptop with Brinell and "calibrated shear pin" indents measuring software
(inside the case)
code USB 10359
(inside the case)
code SPT OVT 000454
|Power Carrying Case BR: Small and strong case in printed aluminium full of all the accessories and electric parts already wired (battery, battery-charger, etc...) ready to be connected to the USB ports (USB2.0) of a PC or a portable one through its USB cables.
(size: 380 x 266 x 150 mm; weight 5.5Kg;
Input voltage for the recharge: 100-240V; 50/60Hz)
code VAL AMA 0000511
WORKING OF BRINELL CHECK SOFTWARE

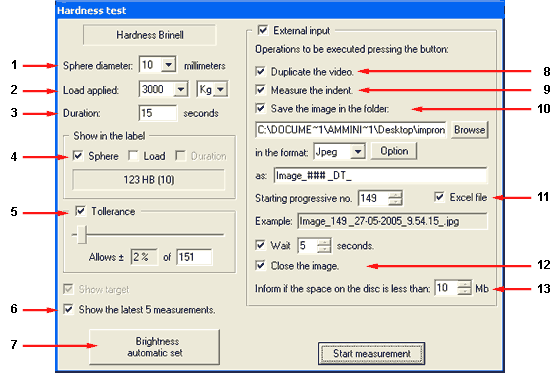

In the software supplied with the Brinell Check, it is possible to select the type of Brinell hardness to measure (Brinell or "calibrated shear pin"), the visualization of the label with the measurement made (dimensions, colours, font) and other selectable parameters, like:
Settings on the hardness test made:
1 - Diameter of the sphere (you can choose the value of the diameter of the sphere used for the hardness test between 1, 2, 2.5, 5 and 10 mm)
2 - Load applied (from 1 to 3000 kg, or from 9,81 to 29430 Newton)
3 - Duration of the test
CALIBRATED SHEAR PIN:
- Type of load applied (dynamic or static)
- Type of indenter (normal or in carbide)
- Type of material on which the test has been made (steel or cast iron)
Settings of the possible measurements::
4 - To show the label of the measurement with information about the diameter of the sphere/load applied/duration of the test
5 - To modify the measurement tolerance
6 - To show on the screen the latest 5 measurements
7 - Calibration of the brightness
It is also possible to select and automate some operations of external input, just pressing a single button, such as:
8 - To duplicate the image on the screen
9 - To measure the indent
10 - To save the image selected in the format, with the options and with the name wished
11 - To export in an Excel table the measurements made
12 - To close the image after the measurement after a fixed waiting time
13 - To warn if the space on the disk is not enough to save the image
MIN-MAX method to measure indents on surfaces with imperfections
Since often in the empiric working, for matters of time (but also of costs), materials not enough smooth and not standardized are used, some problems in the measurements.
This method allows to have very reliable measurements, but you must wait for a few seconds more to visualize the indent with relate diameter and Hardness Brinell value.
Settings saving in profiles
If measurements are made on different types of material, you need to save all parameters to use them in the future on the same type of material.
The Brinell profiles are designed specifically for this purpose, because when you find the ideal parameters to make your measurements, you can save and recall them whenever you need.
System requirements for software operation
|Windows 7, 8, 8.1, 10 (32 and 64 bit)
|Intel Core iX or equivalent
|4 GB (recommended 8 GB)
|1 USB 2.0 for video input
1 USB 2.0 for the software hardware key
Brinell Check with Carrying Case Station BR
For indents from 1,5 to 5 mm
code BC 103872 ....................... On request
For indents from 1 to 2.5 mm
code BC 104442 ....................... On request
